"Adapt and split any source to any device !"

Here you will find more explanations of what you can do by using the Lefson DCAD. Splitter for all types of audio signals, reamper or DI-box, this device is really multipurpose and will help you in any situation. Don't hesitate to contact us if you have any question.

- Types of inputs -

The Lefson DCAD can process all types of audio signals : from instrument, microphone, line, and even the high level of a speaker. You just have to put the "input selection" rotary switch in the correct position.

Picture of the input selection of the DCAD

- Types of outputs -

The Lefson DCAD can be connected to many devices such as instrument amplifiers or effects pedals, and all line level devices as dynamics and spatial effects, mixing console, recorder, etc... The four ISO outputs can be balanced or unbalanced, by using the TRS/TS switches.

Picture of the output types of the DCAD

- DCAD with instrument - Split & keep the original Tone -

The Lefson DCAD is fitted with an high impedance unbalanced input, named INSTR. Directly in parallel of it, a THRU output can be used with an amplifier, to create an original Tone. The four ISO outputs can be connected in several amplifiers without any spectral or level loss, a tuner, or dynamics. The 5:1 DIRECT OUTPUT is used as a direct input box, no matter if all the ISO outputs are muted.

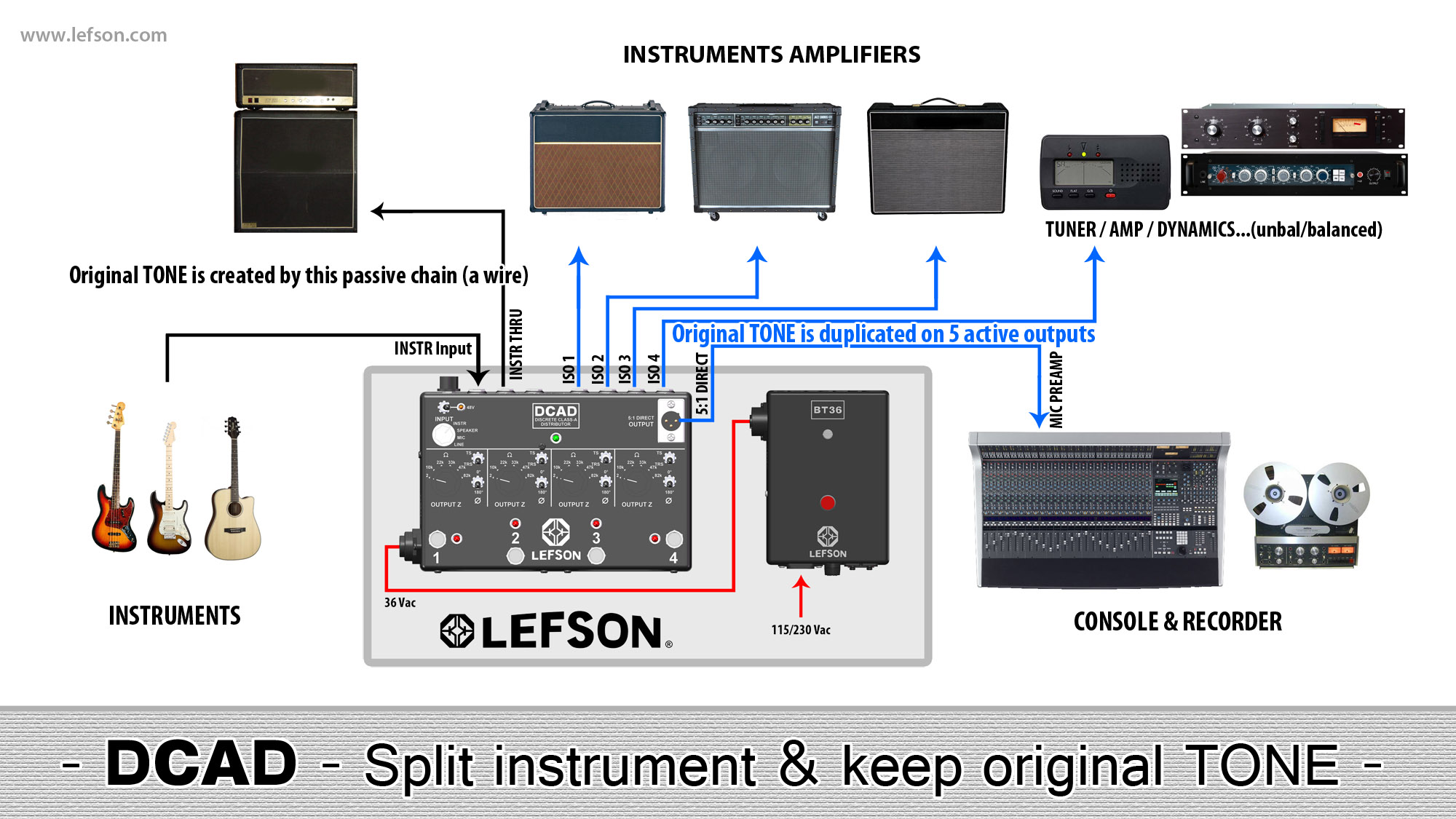

Picture of the DCAD with instrument - Split & keep original Tone

- DCAD with instrument -

The Lefson DCAD is fitted with an high impedance unbalanced input, named INSTR. Directly in parallel of it, a THRU output can be used, for example, to connect a tuner. The four ISO outputs are connected in several amplifiers. The 5:1 DIRECT OUTPUT is used as a direct input box, no matter if all the ISO outputs are muted.

Picture of the DCAD with instrument

- DCAD with microphone -

The Lefson DCAD is fitted with a transformer balanced microphone input. A discrete 48V phantom power supply will allow you to use all types of microphones. A rotary PAD attenuator can be activated to obtain until 60dB of level reduction on this input.

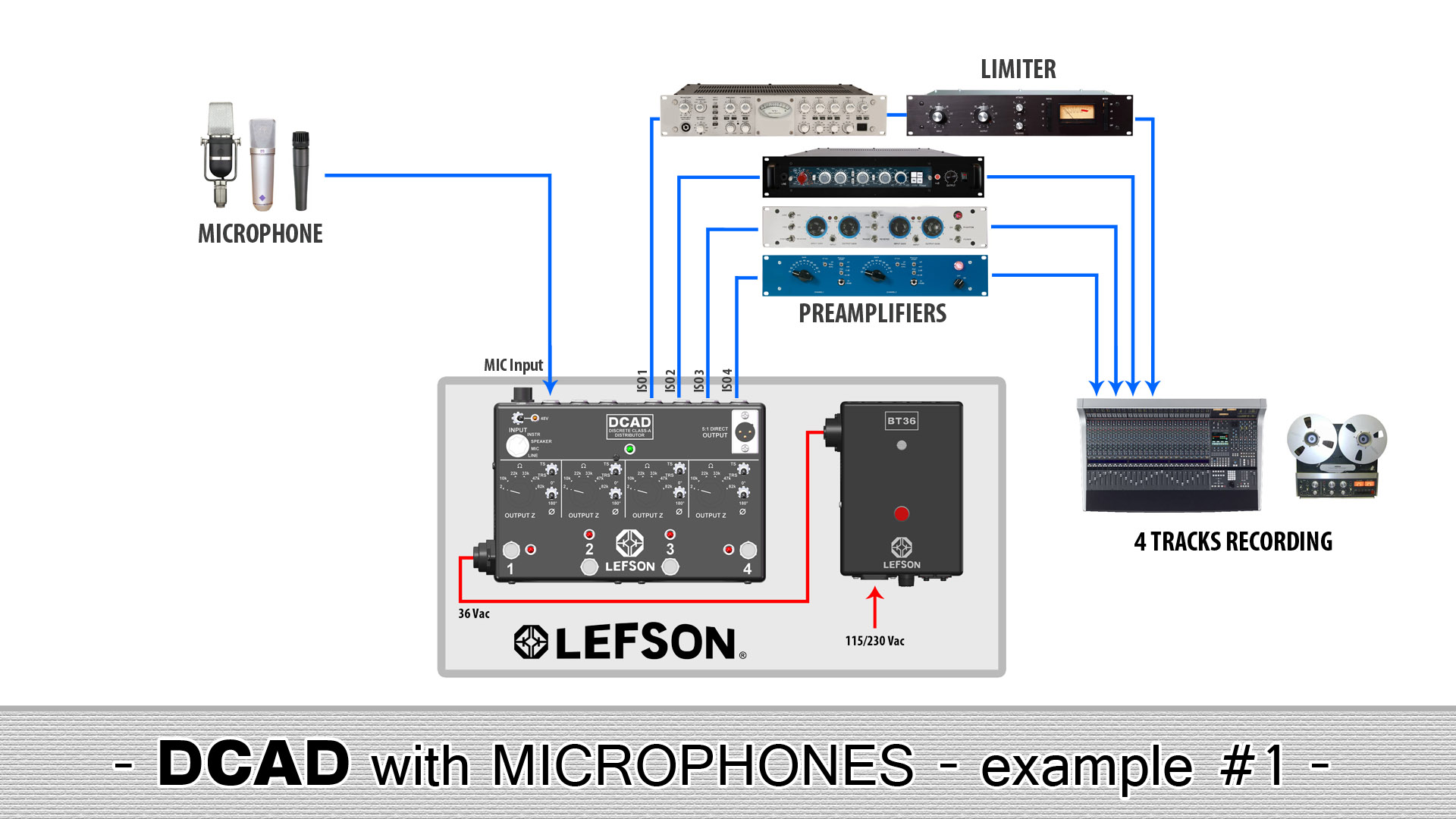

Picture of the DCAD with microphone

Picture of the DCAD with microphone

- (Multi) Reamping with the DCAD -

As the Lefson DCAD is fitted with a transformer balanced line input, you can easily use it to reamp anything. Connect an ISO output to an amplifier, adjust the value of the impedance, select the TS unbalanced position, and reamp !

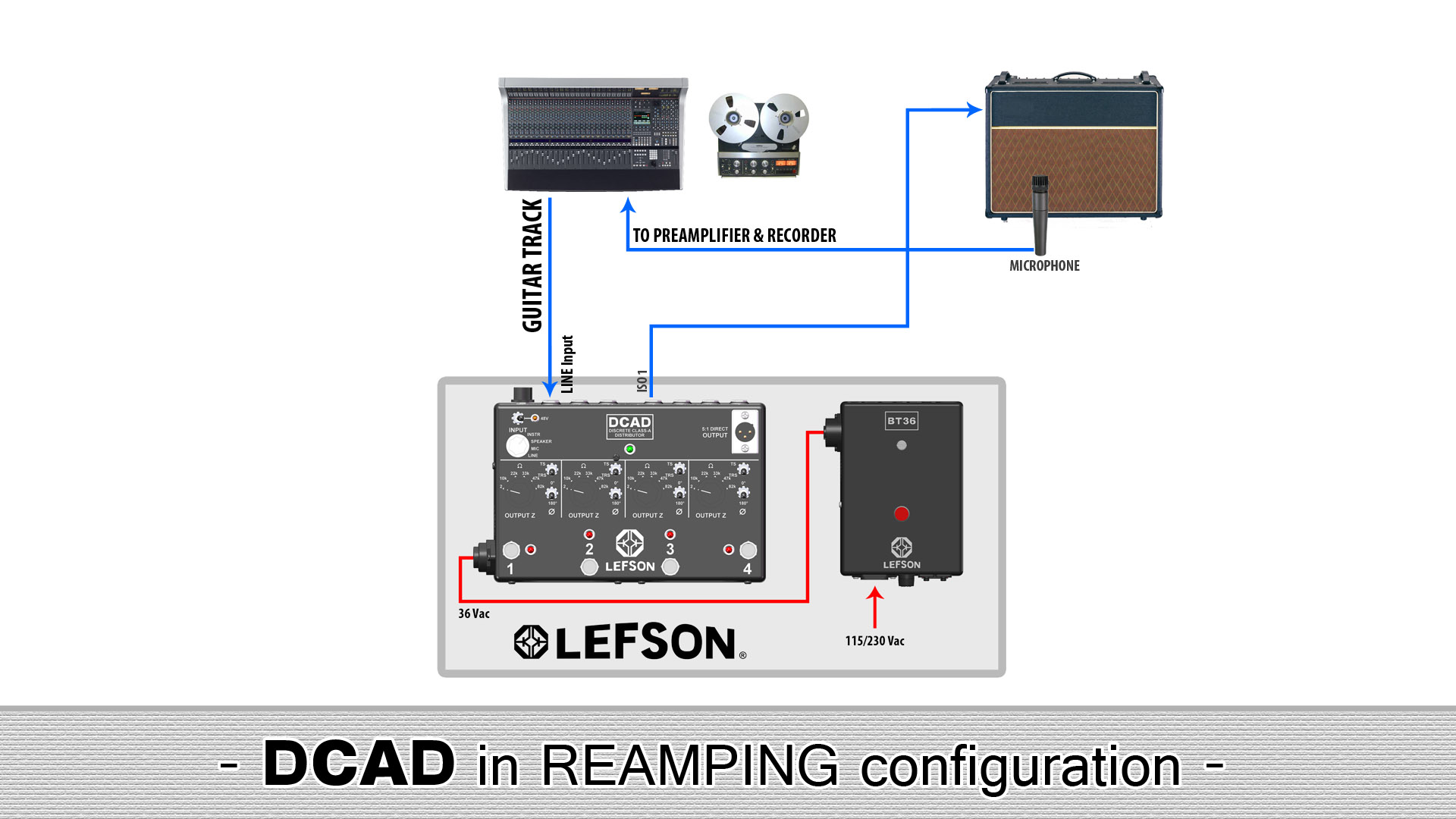

Picture of reamping with the DCAD

Picture of multi-reamping with the DCAD

- Process a SPEAKER level with the DCAD -

The Lefson DCAD is fitted with a SPEAKER input. It divides the audio signal by one hundred (100:1). You can now directly process the power stage of an amplifier. Send it to a recorder, an other amplifier, or what you want...

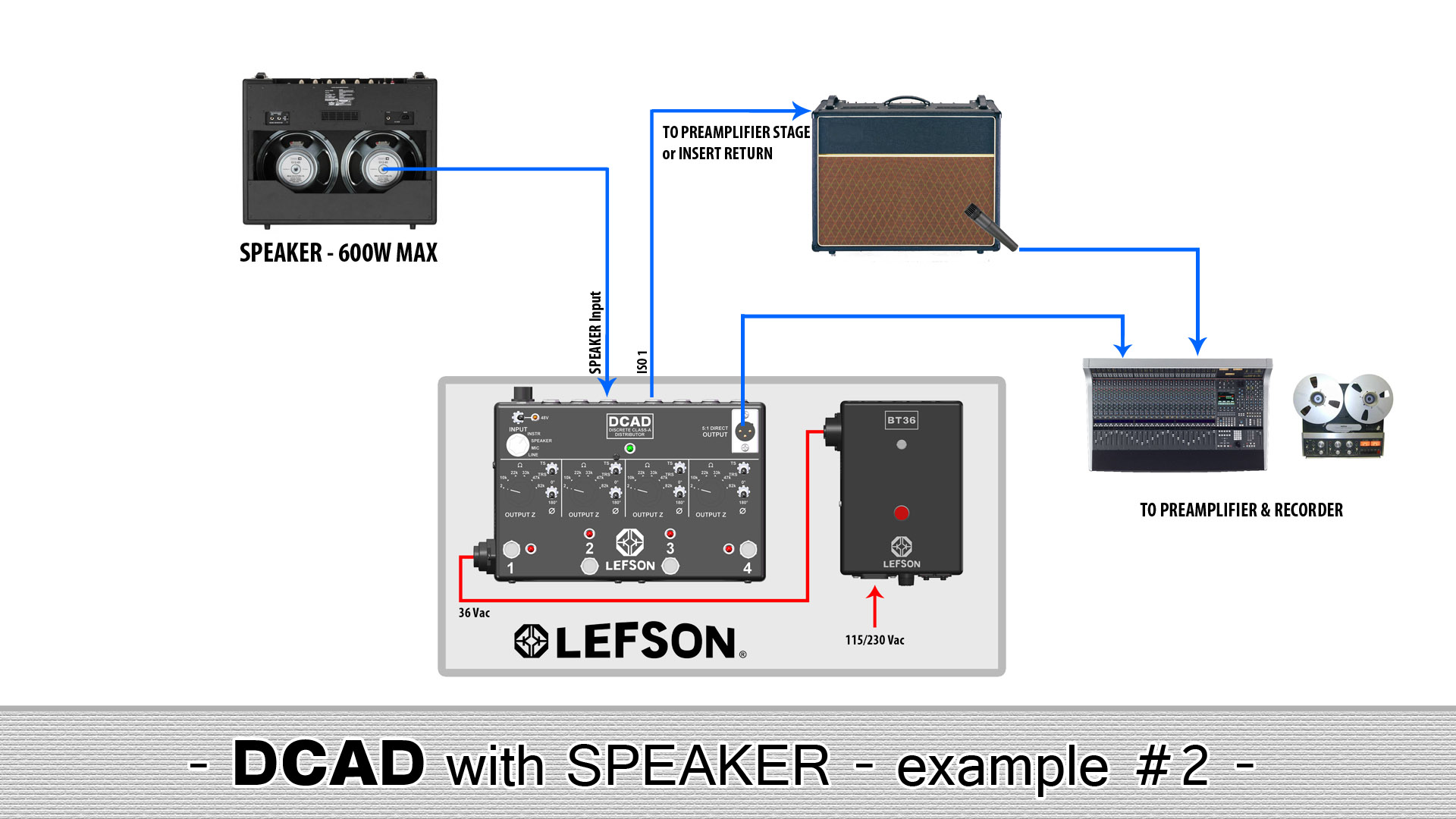

Picture of the DCAD with a speaker level

Picture of the DCAD with a speaker level

- Insert unbalanced effects with the DCAD -

With the LEFSON DCAD, you can easily insert unbalanced effects in your mix !

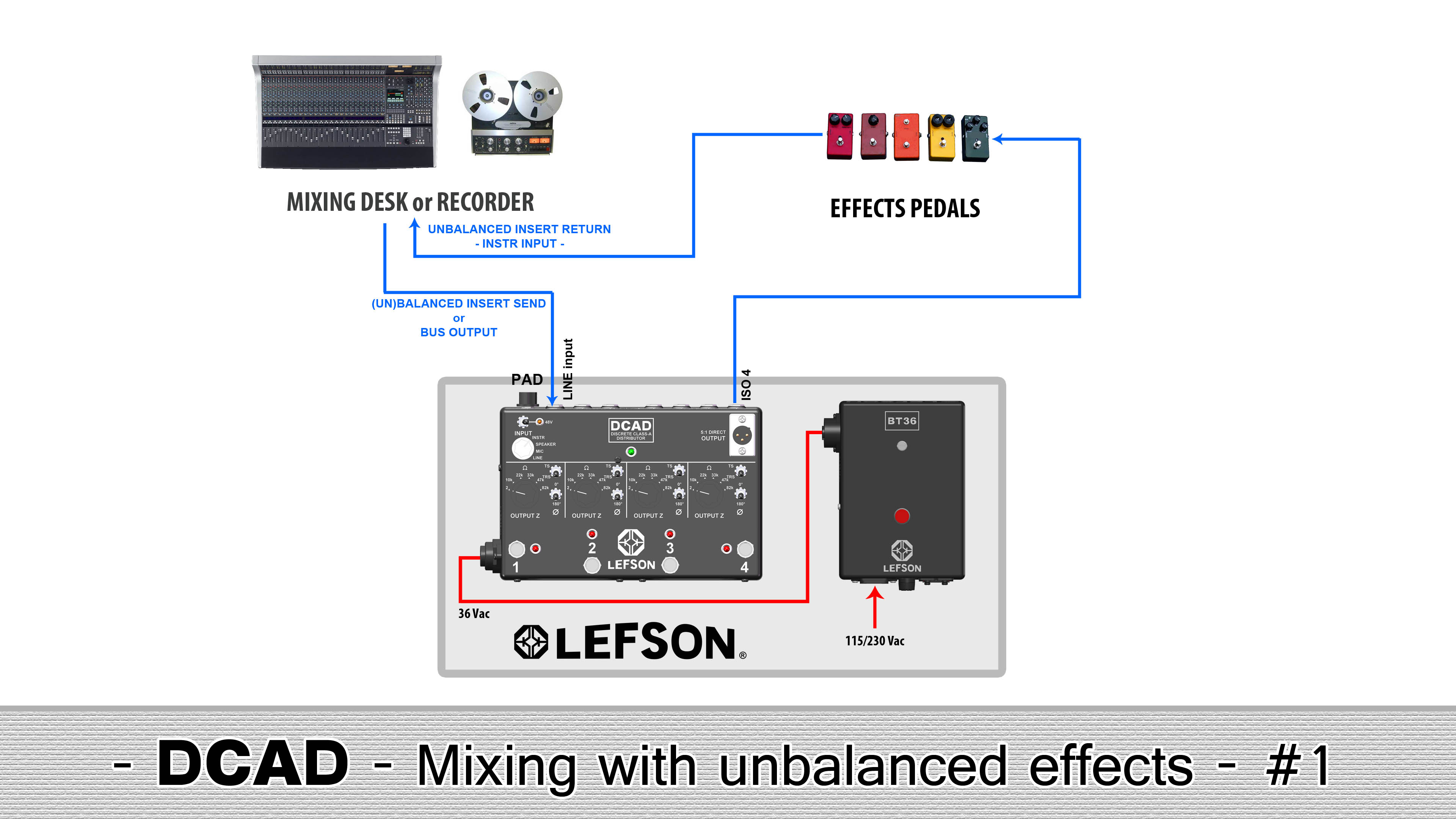

Picture of the DCAD with unbalanced effects

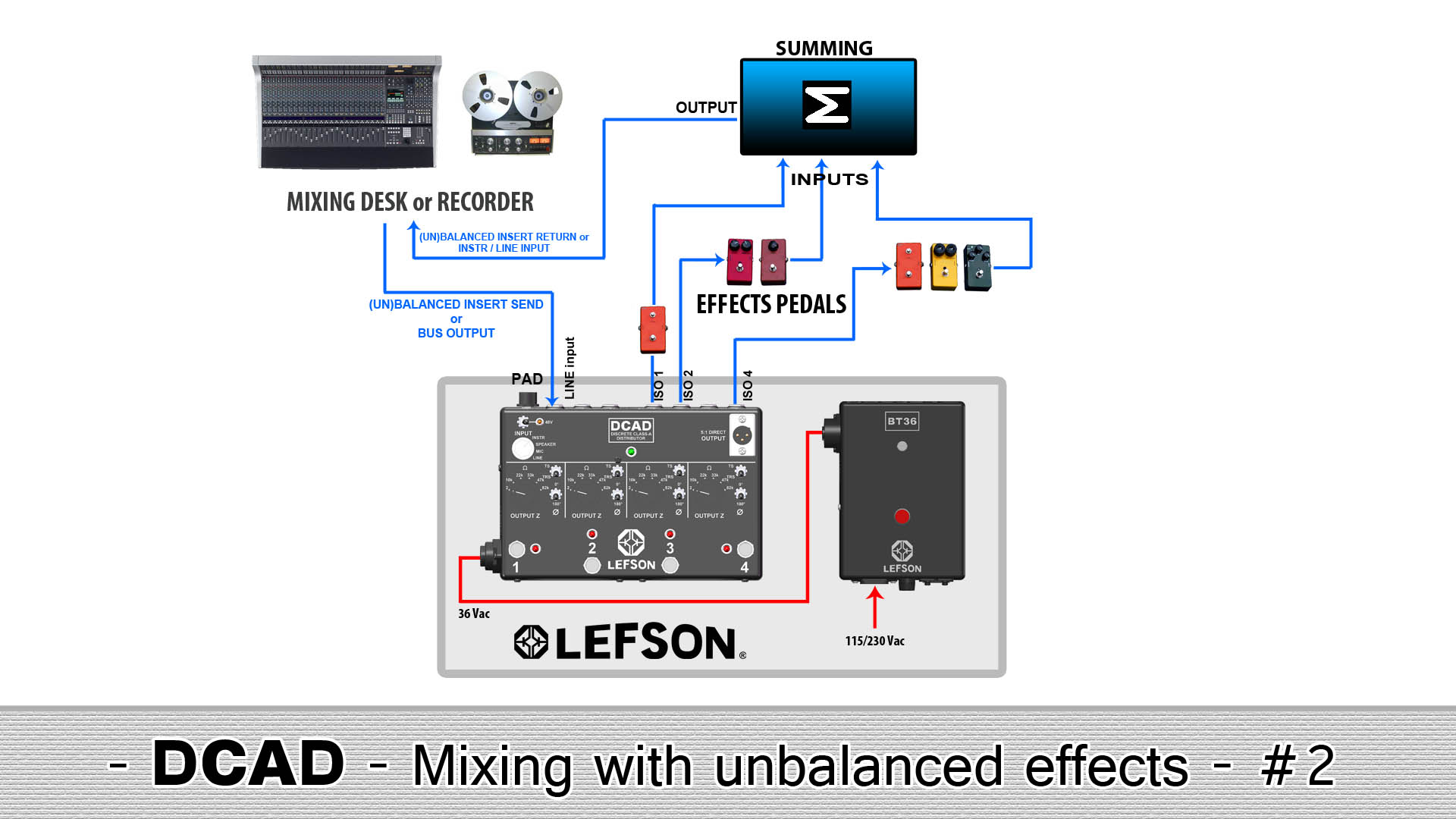

Picture of the DCAD with unbalanced effects in parallel
